PVC High-Speed Roll-Up Doors
Frequent access and environmental separation
Maximum documented sizeWidth 1000–7000 mm · Height 2000–7000 mm
Opening speed0.6–1.2 m/s
Closing speedUp to 0.6 m/s
Product Overview
High-speed fabric roll-up doors are intended for frequently used internal and external passages that require fast opening, environmental separation and configurable vision or sensing options
Configuration and Features
- Adjustable opening speed from 0.6 to 1.2 m/s
- Configurable curtain, hood and guide thicknesses
- Carbon-steel or stainless-steel hood options
- Safety photocell, safety bottom edge and emergency opening
- Soft-start and soft-stop control with IP54 or IP65 protection
- Documented frequent-duty operation for industrial traffic
Engineering Details

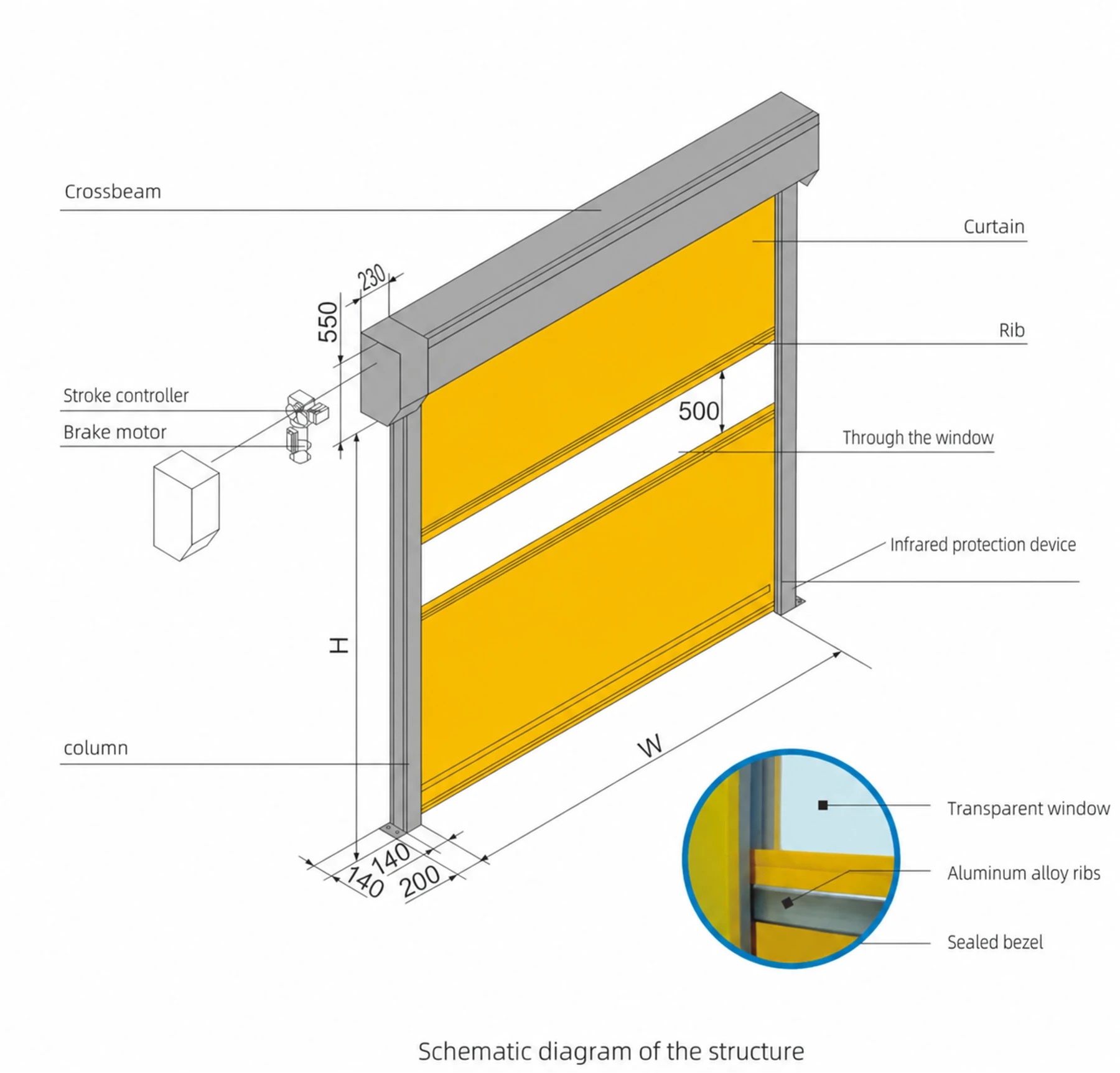

Door system components
The system combines a powered roller, PVC curtain, guides, control box and safety sensors in a configurable internal-door assembly.
- Roller, motor and support assembly
- PVC curtain with wind bars
- Guide tracks with brush sealing
Safety and activation
Activation and protection can be selected around vehicle movement, access frequency and site safety requirements.
- Radar or ground-loop activation
- Photoelectric and safety-edge protection
- Warning lights and manual release
Project configuration
Curtain, hood, guide and control specifications can be adjusted for different internal openings and operating conditions.
- 0.8 / 1.2 / 1.5 / 2.0 mm curtain options
- Carbon-steel or stainless-steel hood
- IP54 or IP65 control protection

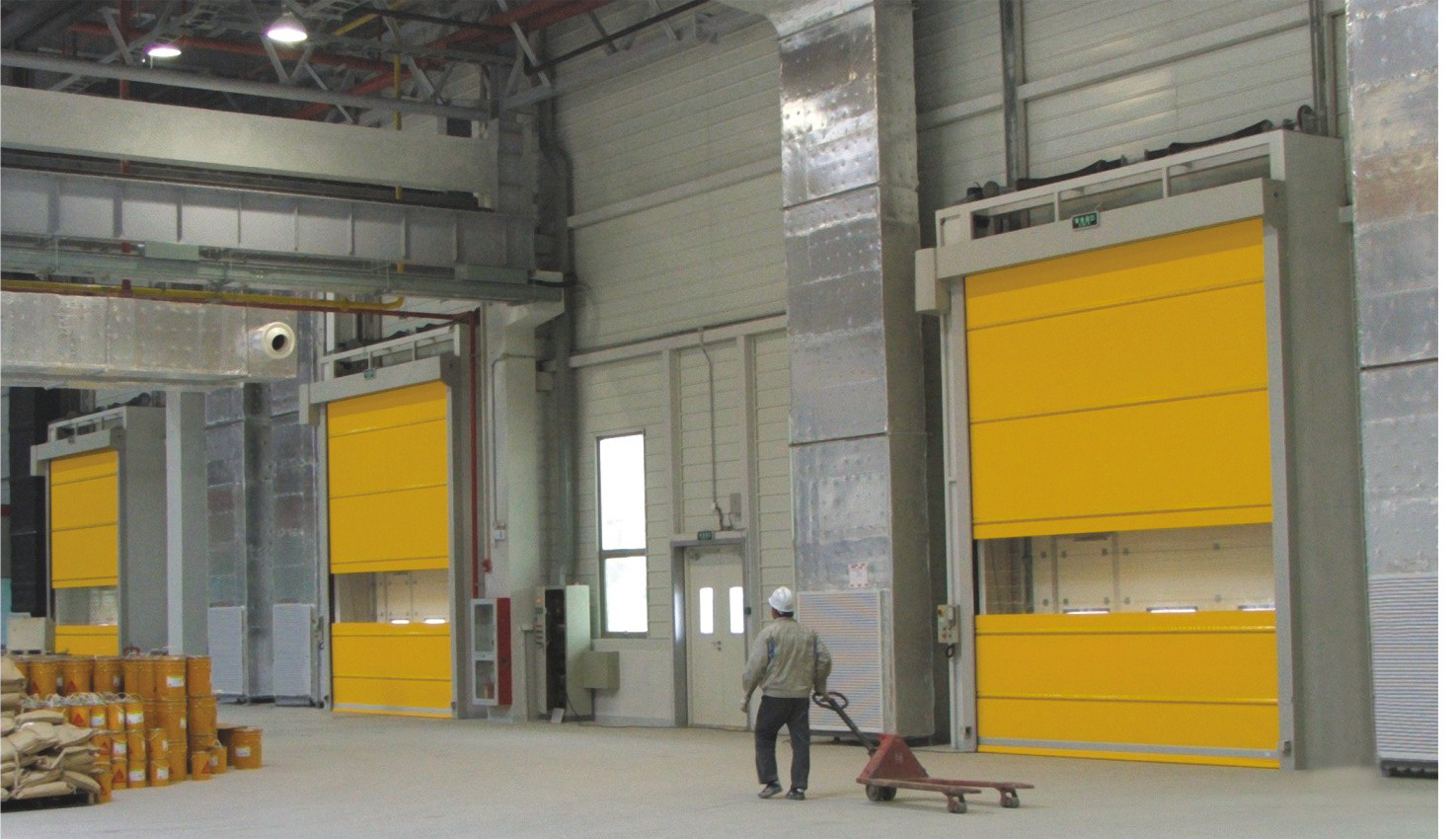

Where This Door Fits
- Interior production areas
- Clean and logistics passages
- Frequent traffic
Final configuration should be confirmed against opening size, traffic frequency and site conditions
Documented Technical Facts

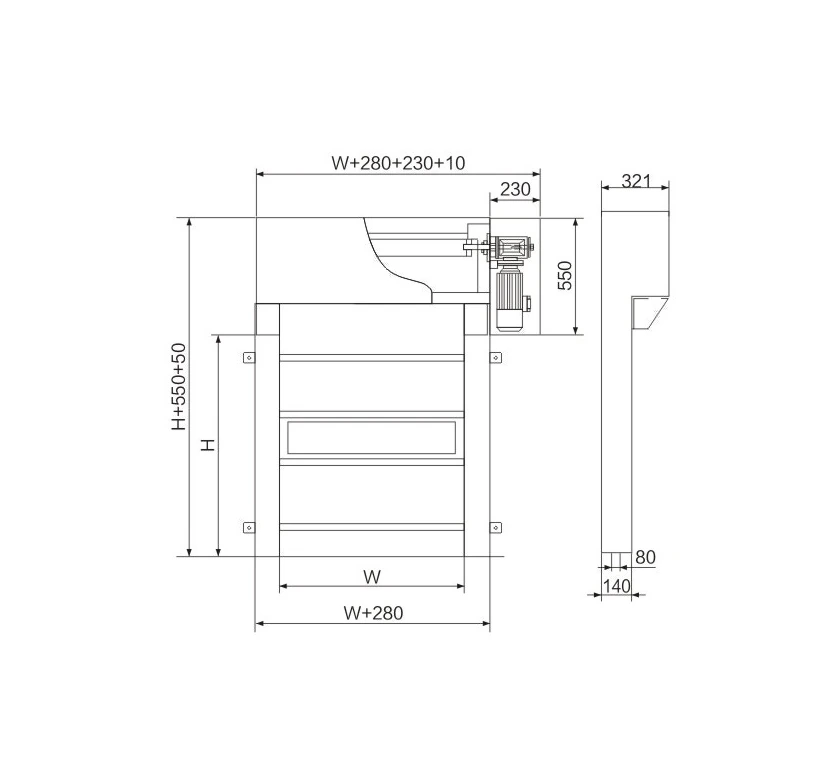

- Maximum documented size
- Width 1000–7000 mm · Height 2000–7000 mm
- Opening speed
- 0.6–1.2 m/s
- Closing speed
- Up to 0.6 m/s
- Documented wind resistance
- Grade 6 ≤16 m² · Grade 4 for 16–36 m²
- Structure
- PVC curtain 0.8 / 1.2 / 1.5 / 2.0 mm
- Drive and control
- Soft start / stop · IP54 or IP65
