High-Speed Stacking Doors
Wind-resistant fabric doors for wide industrial passages
Maximum documented size6500 × 8000 mm
Opening speed0.5–1.0 m/s
Closing speed0.5–0.8 m/s
Product Overview
Stacking doors lift the reinforced curtain in horizontal folds, providing rapid access for wide passages in workshops, parking areas, logistics routes and other exposed industrial openings
Configuration and Features
- Horizontal support bars reinforce the folding curtain across wider openings
- Curtain sections and vision-panel materials can be replaced
- Galvanized-steel frame for indoor or outdoor installation
- PVC bottom fabric and brush sealing on both sides
- Radar, ground-loop and photoelectric options for different traffic conditions
- Documented operating range from -40°C to +70°C for the listed configuration
Engineering Details
Reinforced stacking structure
The drive lifts the curtain with belts, forming horizontal folds above the opening while support bars stabilize the wide fabric surface
- Top hood and drive motor
- Guide tracks and lifting belts
- Horizontal support bars
Curtain and sealing
Replaceable curtain sections support maintenance without changing the complete door system
- Replaceable fabric and vision panels
- Elastic PVC bottom fabric
- Brush sealing along both sides
Control and safety
Activation and protection can be configured around vehicle traffic, opening frequency and site conditions
- Infrared and photoelectric protection
- Warning lights and anti-collision bollards
- Manual release during power failure
Where This Door Fits
- Wide industrial passages
- Workshop and parking entrances
- Printing, automotive and logistics routes
- Indoor or outdoor wind-exposed openings
Final configuration should be confirmed against opening size, traffic frequency and site conditions

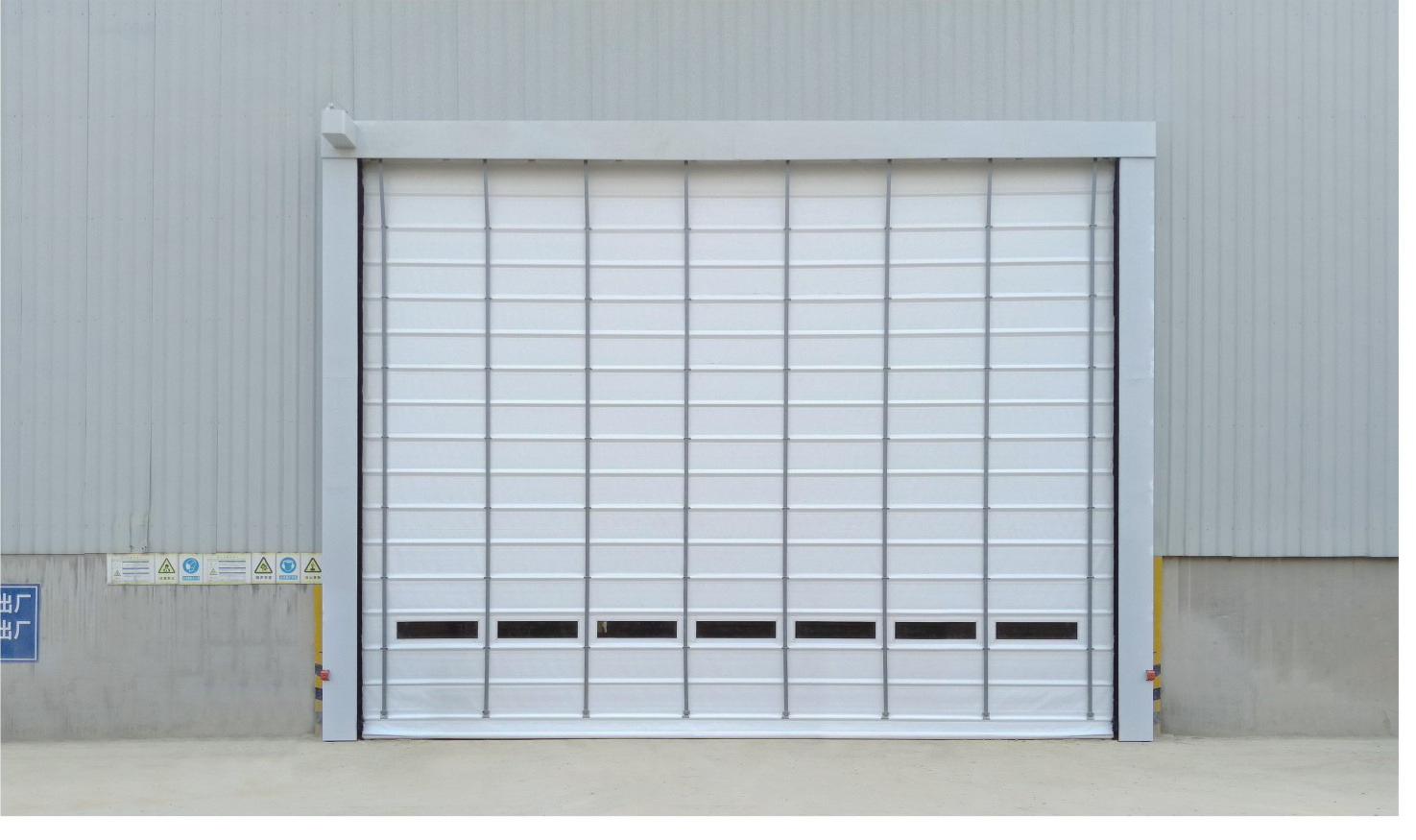

Product Gallery
Documented Technical Facts
- Maximum documented size
- 6500 × 8000 mm
- Opening speed
- 0.5–1.0 m/s
- Closing speed
- 0.5–0.8 m/s
- Operating frequency
- 800–1000 cycles/day
- Documented wind resistance
- 20 m/s, documented for 3 × 3 m
- Water resistance
- Level 2
- Operating temperature
- -40°C to +70°C
- Documented service life
- 1,000,000 cycles
