Vertical-Lifting Fabric Doors
Custom vertical lifting for very large openings
StructureDouble-layer fabric curtain with steel cross beams
Drive and controlVertical folding and lifting system
Product Overview
Large vertical-lift fabric doors use a double-layer curtain connected by steel cross beams, folding upward to serve hangars, shipyards and other exceptionally large industrial openings
Configuration and Features
- Double-layer polyester-based curtain with steel cross beams
- Vertical folding system that stacks above the opening
- Internal installation or configurable self-supporting structure
- Steel wind bars reinforce the curtain across large spans
- Bottom and side soft sealing helps limit dust transfer
- Bottom sensing can stop and reverse the door when an obstruction is detected
Engineering Details
Vertical-folding structure
Two curtain layers are connected by steel cross beams and fold vertically above the opening, reducing the track space required inside the building
- Double-layer curtain
- Steel cross beams
- Internal or self-supporting installation
Curtain and wind-bar system
Polyester-based fabric with a coated surface is reinforced by steel wind bars for exceptionally wide project openings
- Coated fabric surface
- Internal round-pipe wind bars
- Bottom and side soft sealing
Safety and project configuration
Mechanical and electrical protection is configured for the opening, traffic pattern and surrounding structure
- Bottom electronic sensing
- Obstruction stop and return
- Relatively few moving maintenance points
Where This Door Fits
- Aircraft hangars
- Shipyards
- Steel and mineral-processing facilities
- Oversized manufacturing openings
Final configuration should be confirmed against opening size, traffic frequency and site conditions

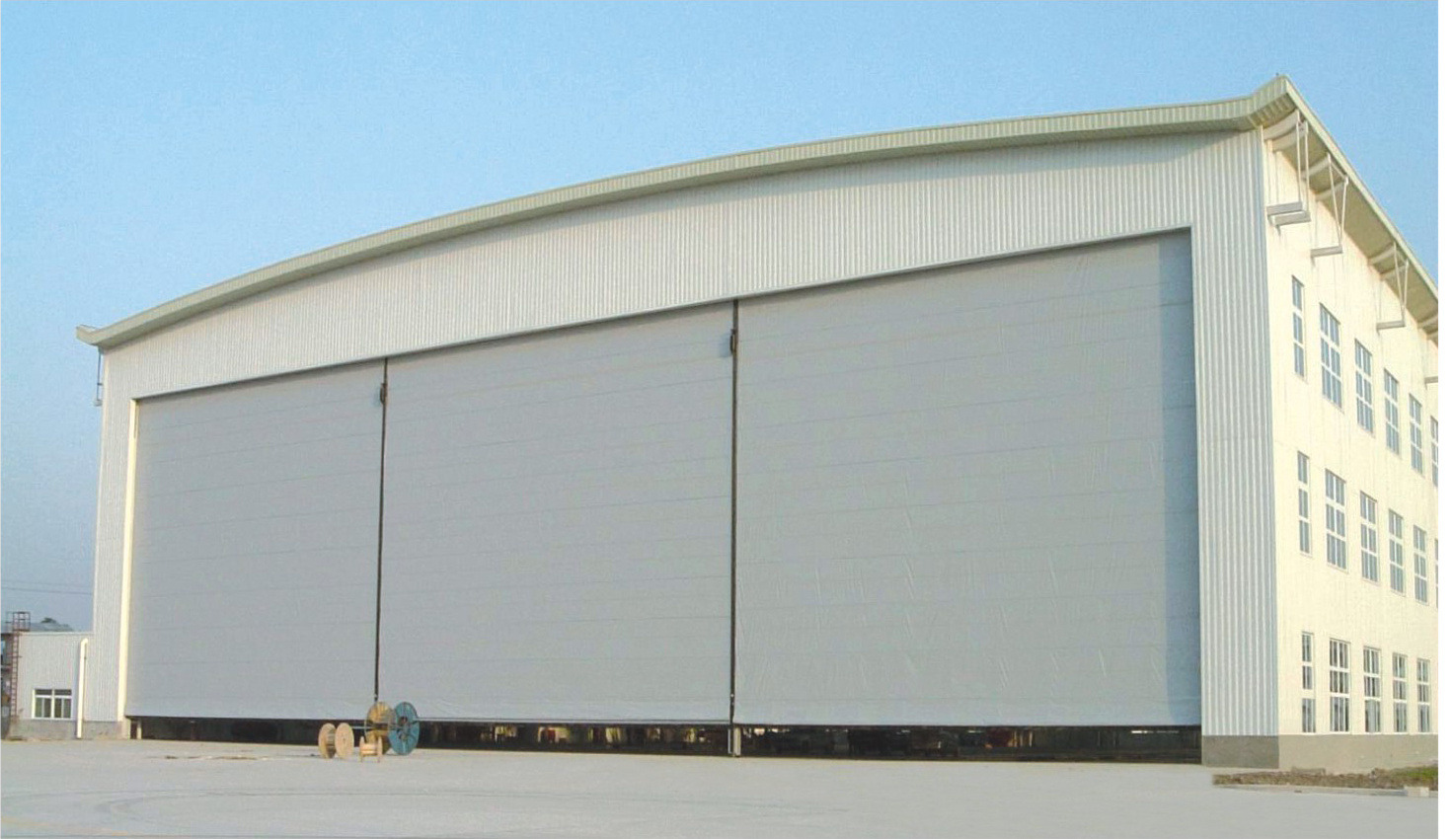

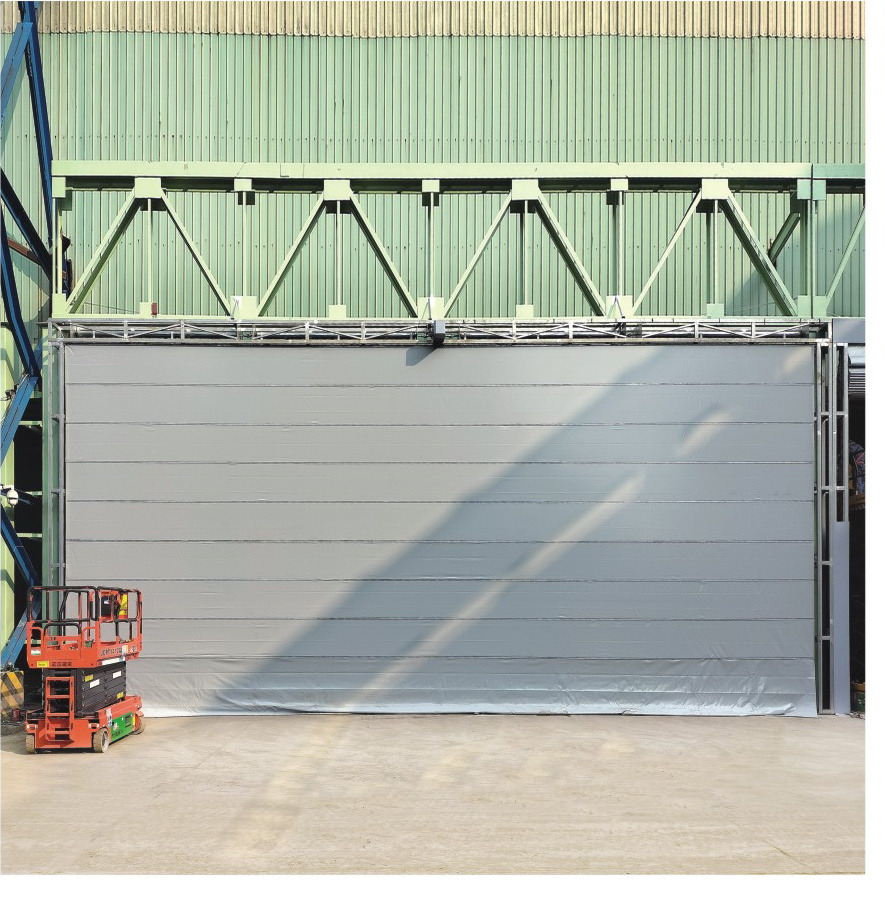

Product Gallery
Documented Technical Facts
- Structure
- Double-layer fabric curtain with steel cross beams
- Drive and control
- Vertical folding and lifting system
