Overhead Sectional Doors
Insulated access for industrial buildings and loading areas
Panel thickness40 / 43 / 50 / 60 / 75 mm
Maximum documented size8000 × 10000 mm
Opening speed110 mm/s
Product Overview
Industrial sectional doors use insulated color-steel composite panels with a polyurethane core to provide durable, space-efficient access for workshops, warehouses and loading areas
Configuration and Features
- Color-coated steel composite panels with a polyurethane foam core
- Documented panel thicknesses of 40, 43, 50, 60 and 75 mm
- Smooth, stucco and wood-grain surface options

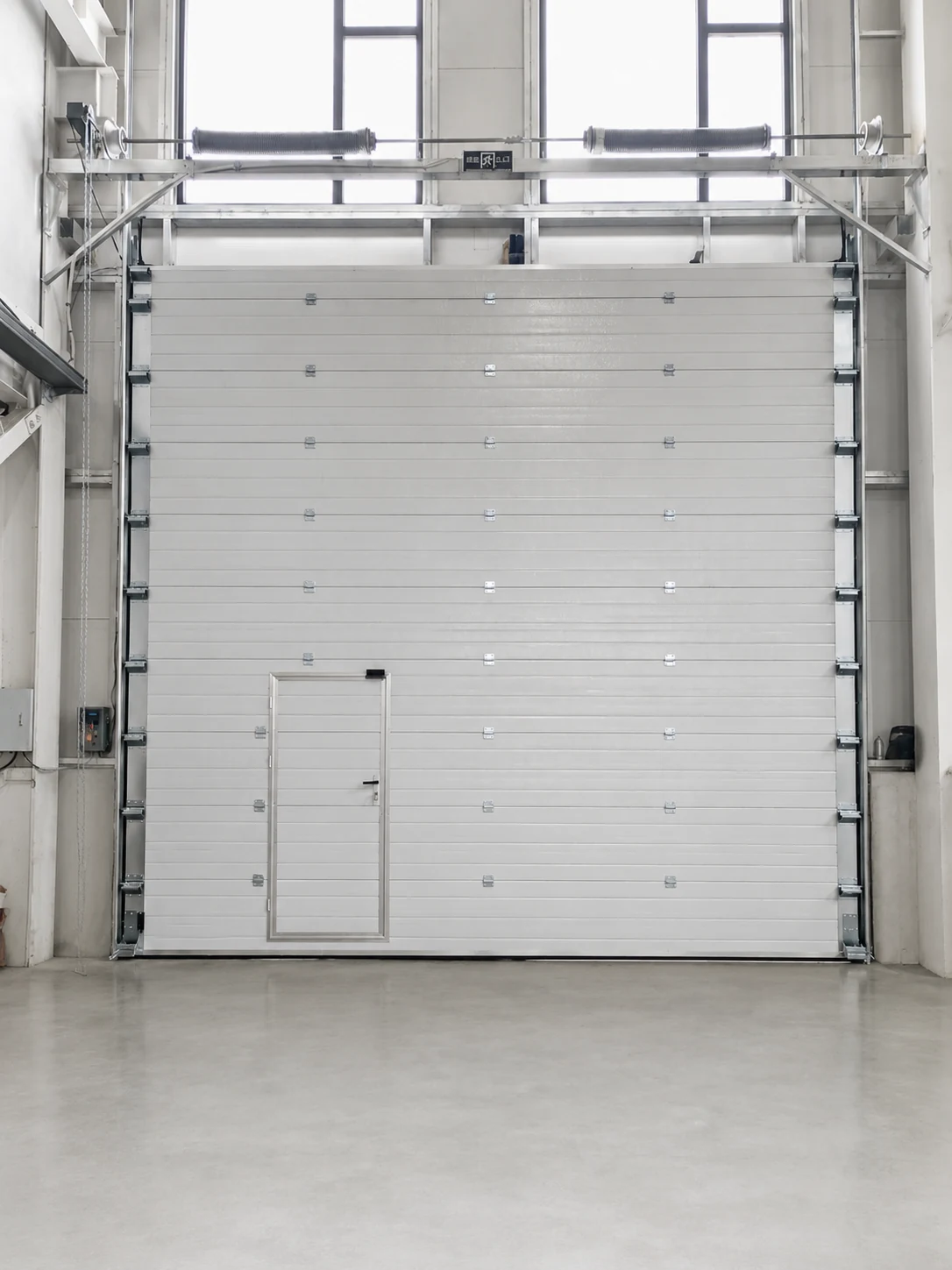

- Calculated spring or counterweight balancing supports smooth operation
- Multiple lift arrangements for different headroom conditions
- Configurable protection, control and manual-release options
Engineering Details
Panel construction and finishes
Insulated composite panels can be configured by thickness, surface finish and reinforcement for different opening sizes and operating environments.

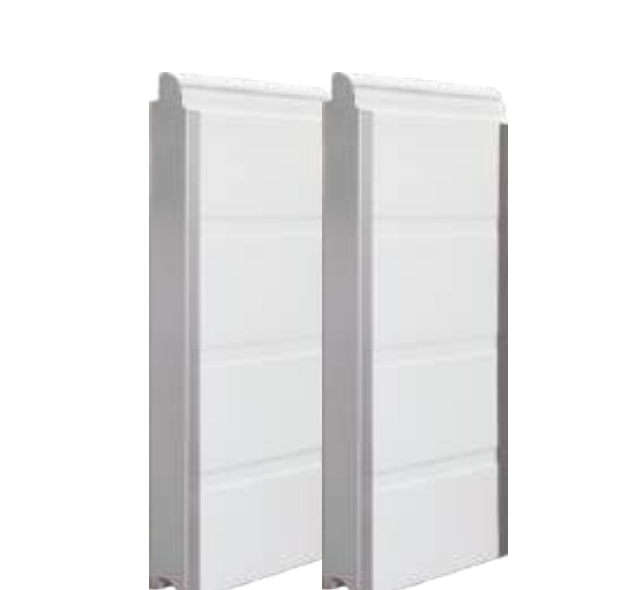

- 40mm Finger-Protection Panel

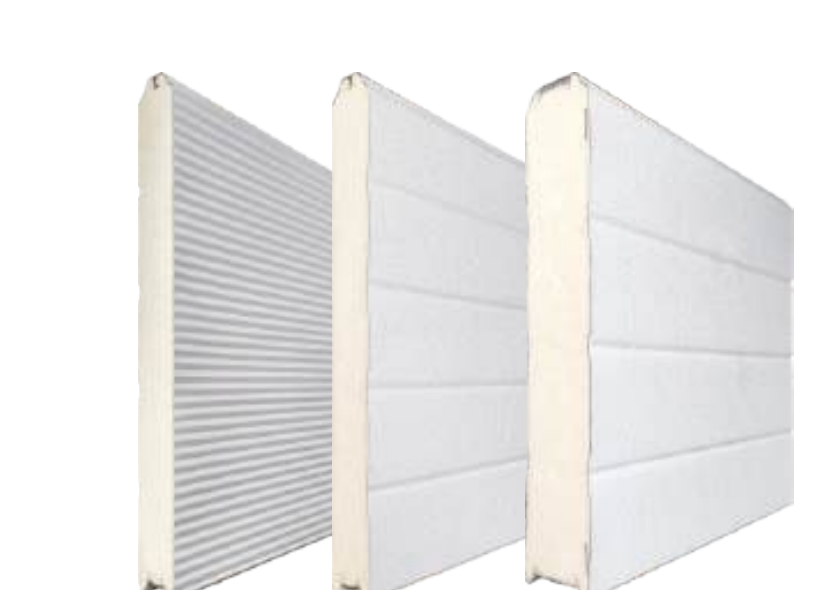

- 50mm Thermal Break Panel

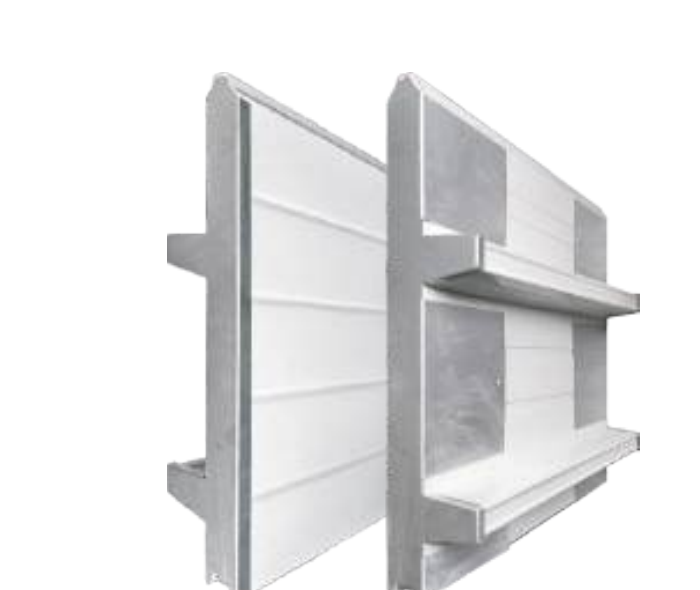

- 43+90mm Panel with Back Reinforcement
Panel Types

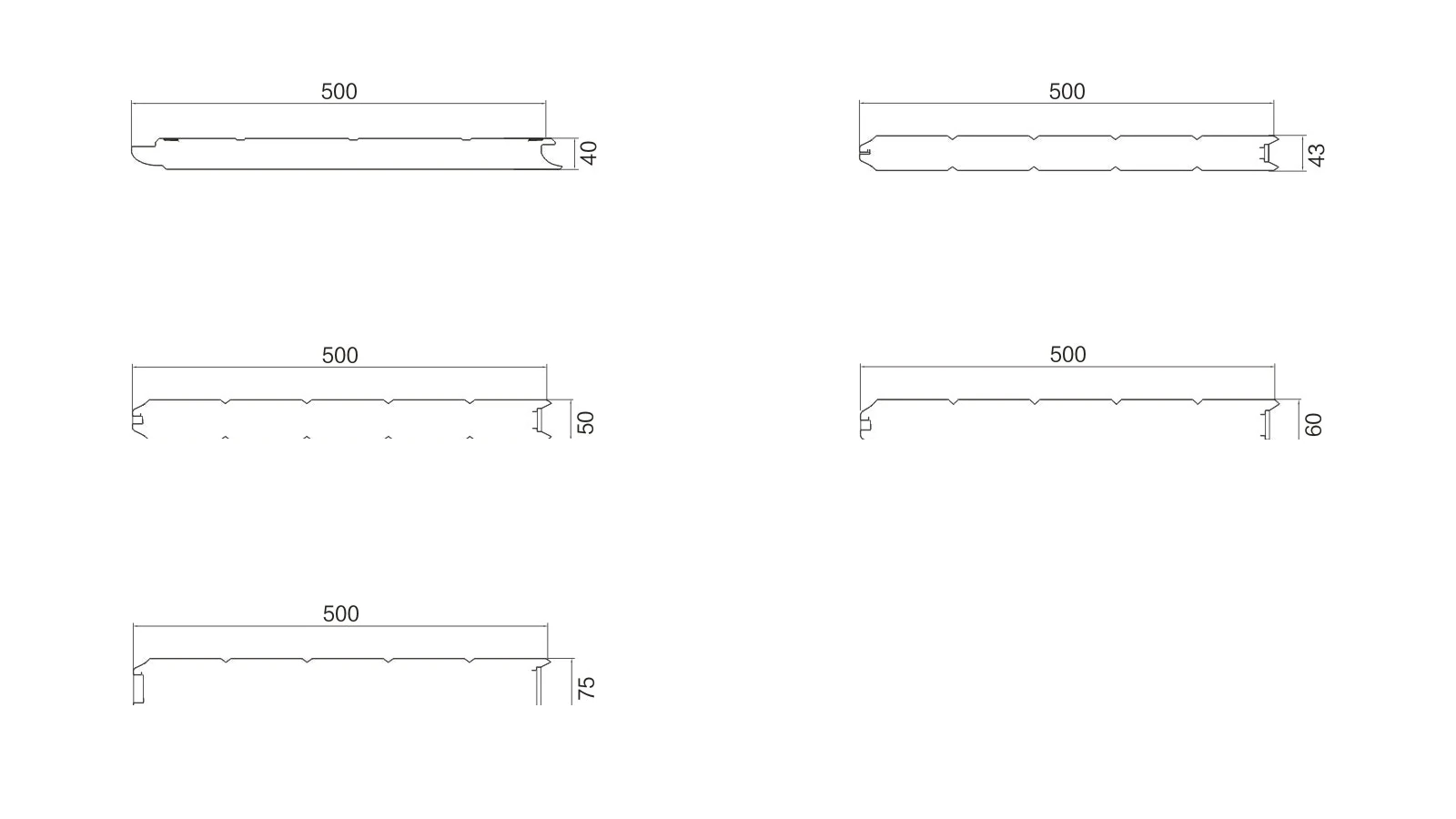

Panel Sections
Surface Finishes
Lift and track arrangements
Six documented arrangements adapt the track path to standard, low-headroom, inclined and vertically constrained openings.

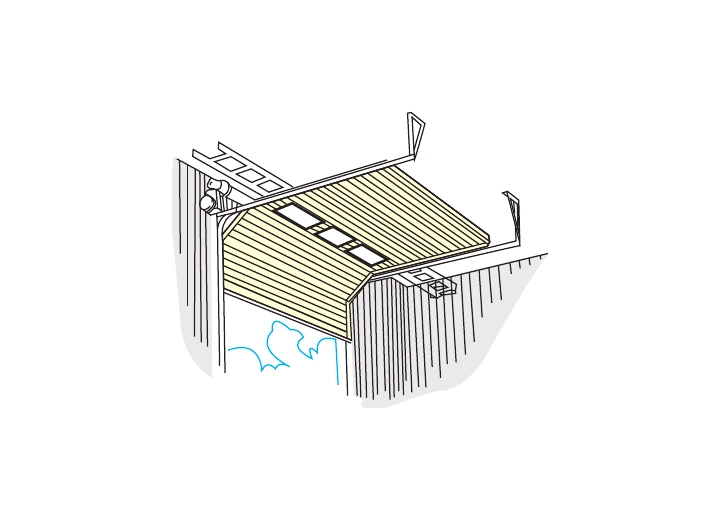

- Standard Lift

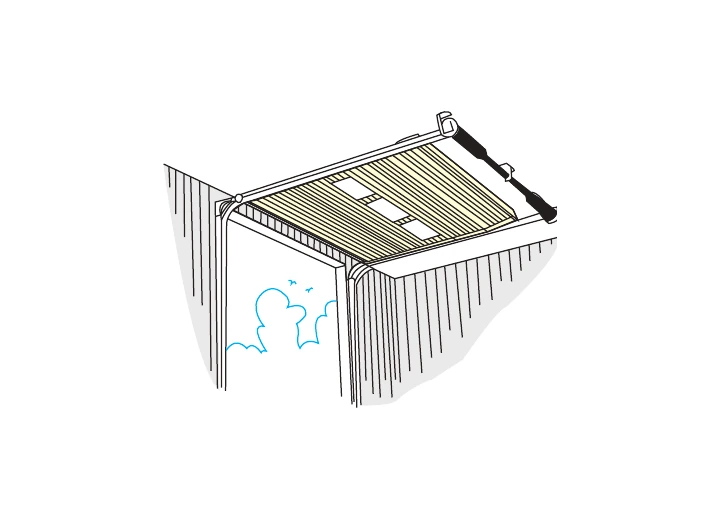

- Low-Headroom Rear Torsion Spring Lift

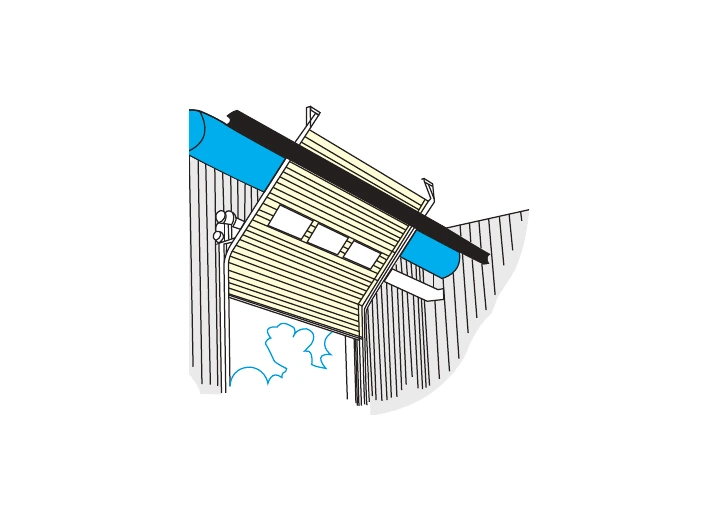

- Inclined-Track Lift

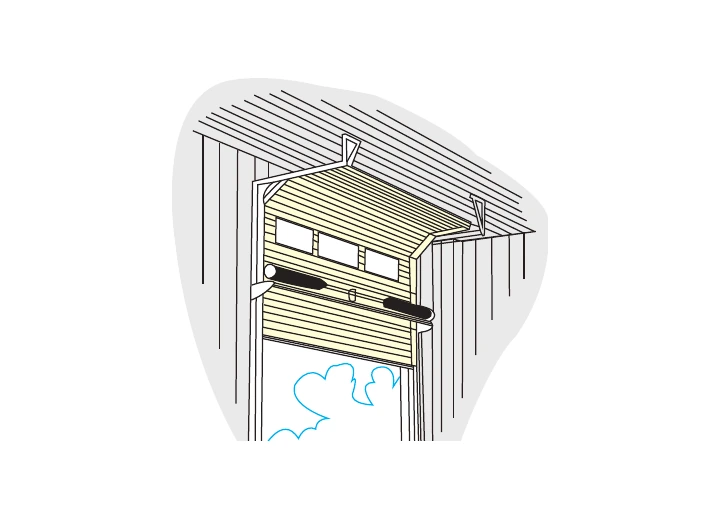

- Vertical Combination Lift

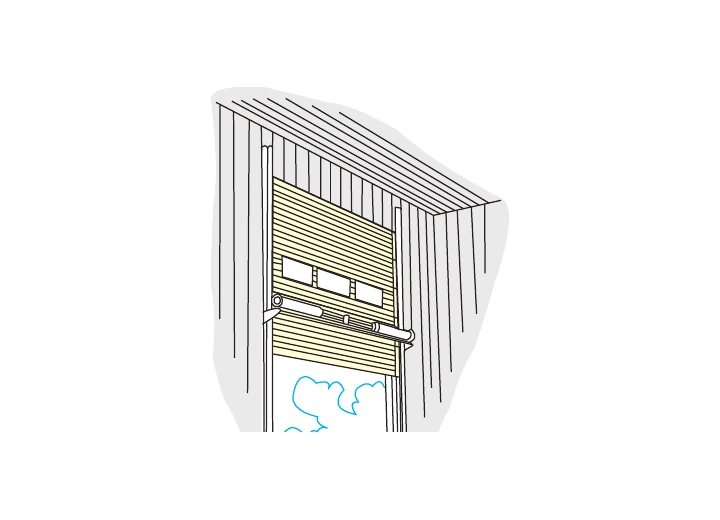

- Vertical Lift

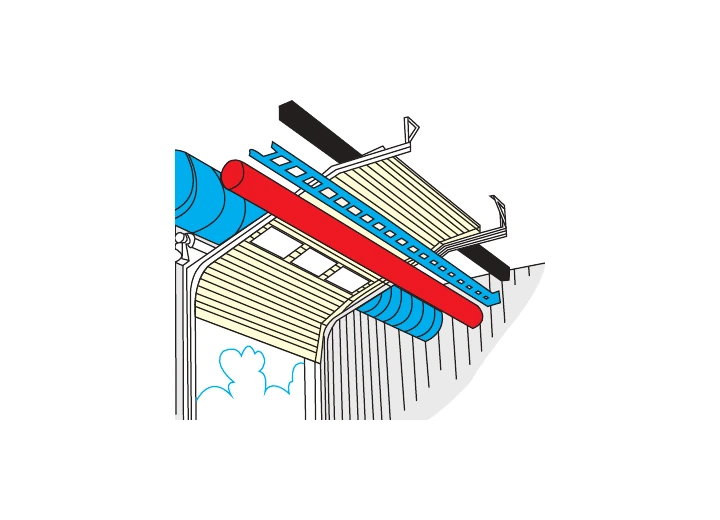

- Special Track Configuration
Safety and control
Manual and automatic control options can be combined with protection selected for the opening and traffic conditions.
- Safety edge or airbag protection

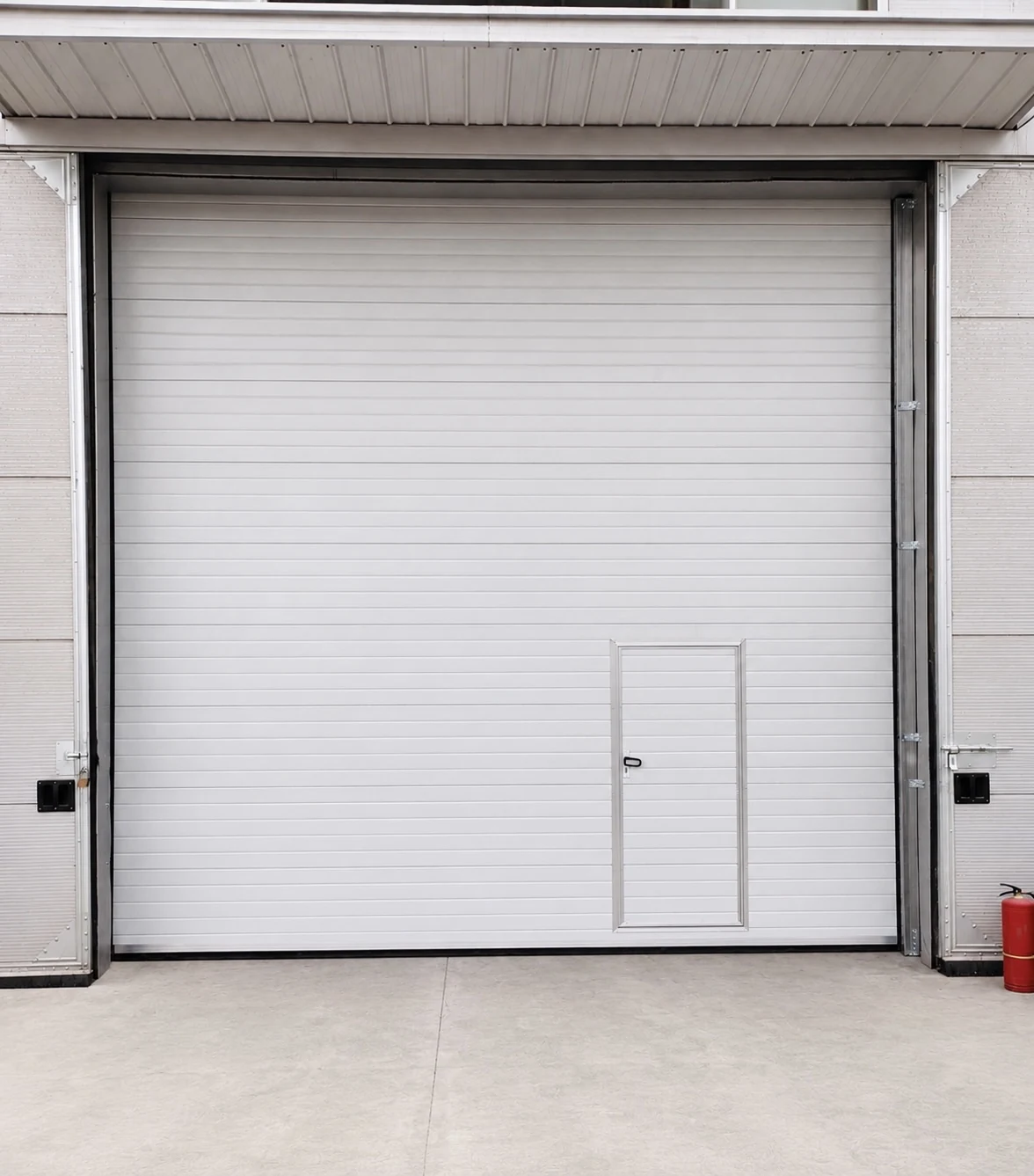

- Pass-door interlock and fall protection
- Travel-limit and chain-break protection
Where This Door Fits
- Warehouses
- Manufacturing facilities
- Logistics centers
Final configuration should be confirmed against opening size, traffic frequency and site conditions
Product Gallery
Documented Technical Facts
- Panel thickness
- 40 / 43 / 50 / 60 / 75 mm
- Maximum documented size
- 8000 × 10000 mm
- Opening speed
- 110 mm/s
- Drive and control
- 220 / 380 V · 450 W
- Operating temperature
- -30°C to +50°C
