Spiral High-Speed Doors
Rigid high-speed access with compact track configurations
Opening speed1–2 m/s
StructureAluminum slats with spiral track options
Drive and controlServo control with encoder positioning
Product Overview
Rigid aluminum slats combine high-speed movement with a compact overhead storage system for busy industrial entrances where traffic flow, enclosure and appearance are all important
Configuration and Features
- Adjustable opening speed from 1 to 2 m/s
- Integrally formed high-tensile aluminum alloy panels
- High-precision encoder positioning and servo control
- Balanced lifting helps reduce motor load and component wear
- Guide, panel-joint, perimeter and bottom sealing
- Infrared sensing and anti-crushing light-grating options
Engineering Details
Panel thickness options
Five documented panel sections support different insulation, strength and anti-pinch requirements.
- 30 mm Door Panel
- 40 mm Anti-Pinch Door Panel

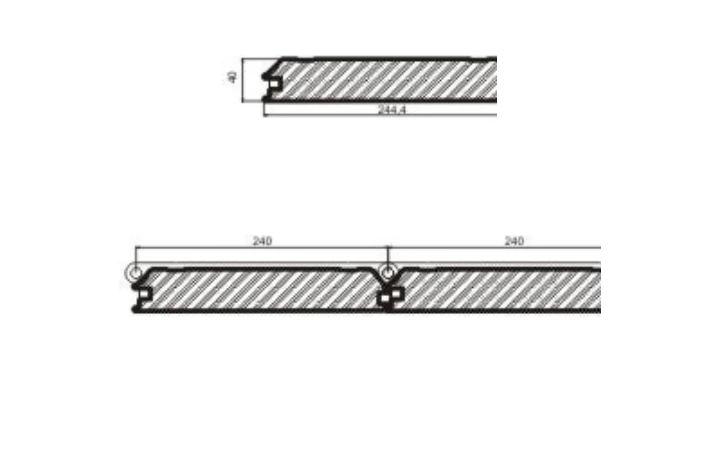

- 40 mm Door Panel

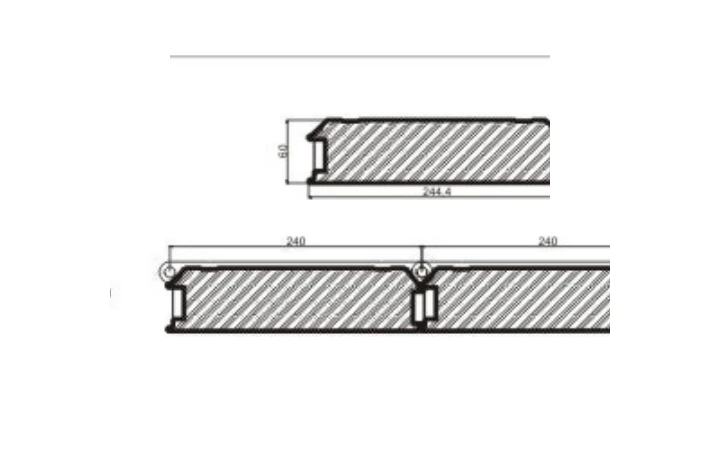

- 60 mm Door Panel

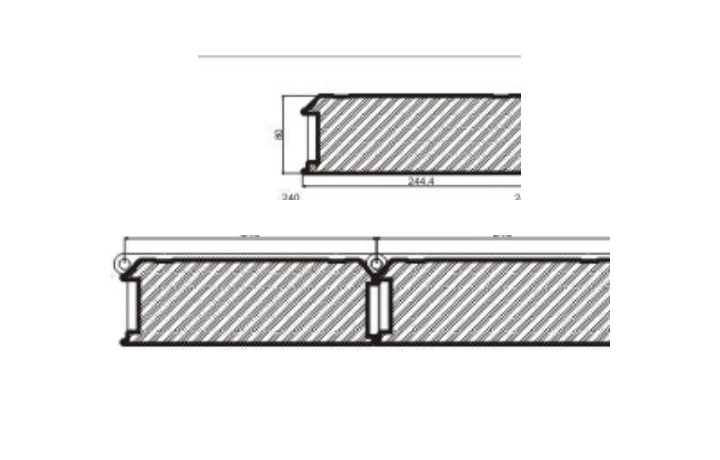

- 80 mm Door Panel
Spiral guide configurations
The guide layout can be selected around available headroom and the surrounding building structure.

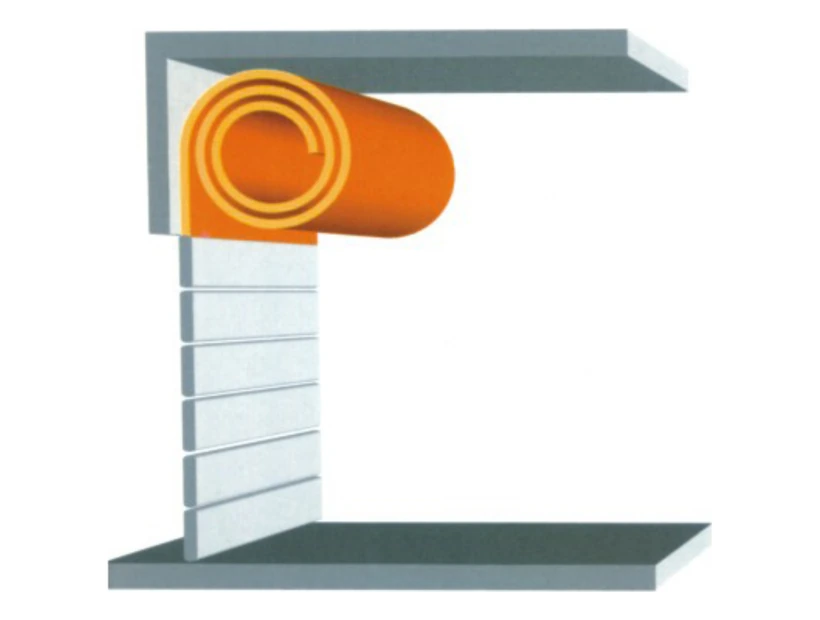

- Circular Spiral Guide
- Elliptical Spiral Guide

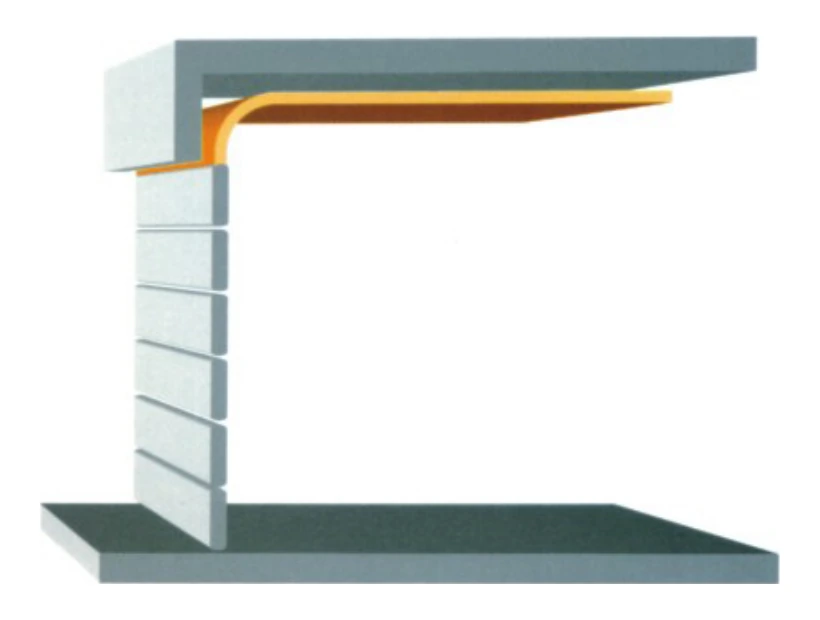

- Low-Lintel Guide
Drive, sealing and protection
Servo drive, encoder positioning, multi-point sealing and configurable sensors support frequent industrial operation.
- Digitally adjustable servo drive
- EPDM, aluminum and cold-rolled steel guide structure
- Infrared and light-grating protection
Where This Door Fits
- Thermal separation
- Frequent operating cycles
- Exterior openings
Final configuration should be confirmed against opening size, traffic frequency and site conditions

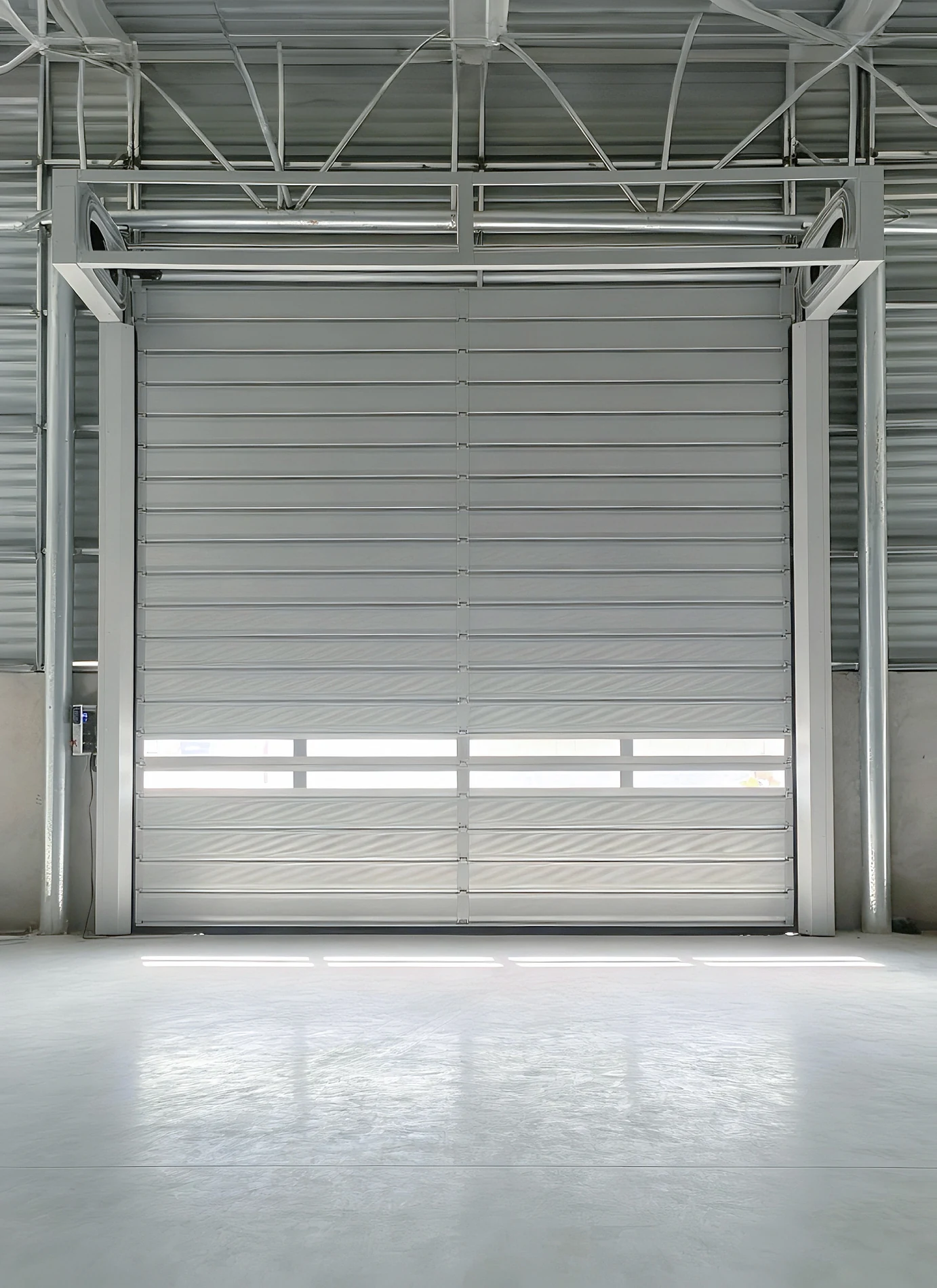

Product Gallery
Documented Technical Facts
- Opening speed
- 1–2 m/s
- Structure
- Aluminum slats with spiral track options
- Drive and control
- Servo control with encoder positioning
